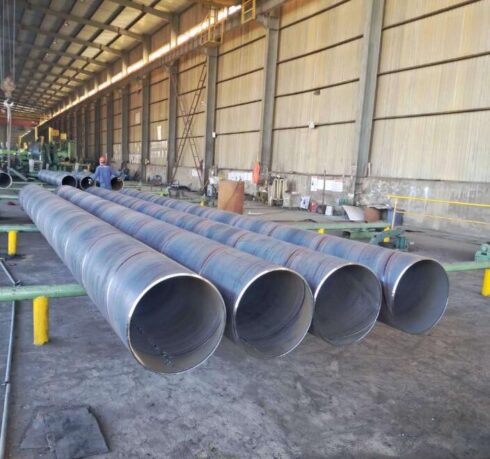

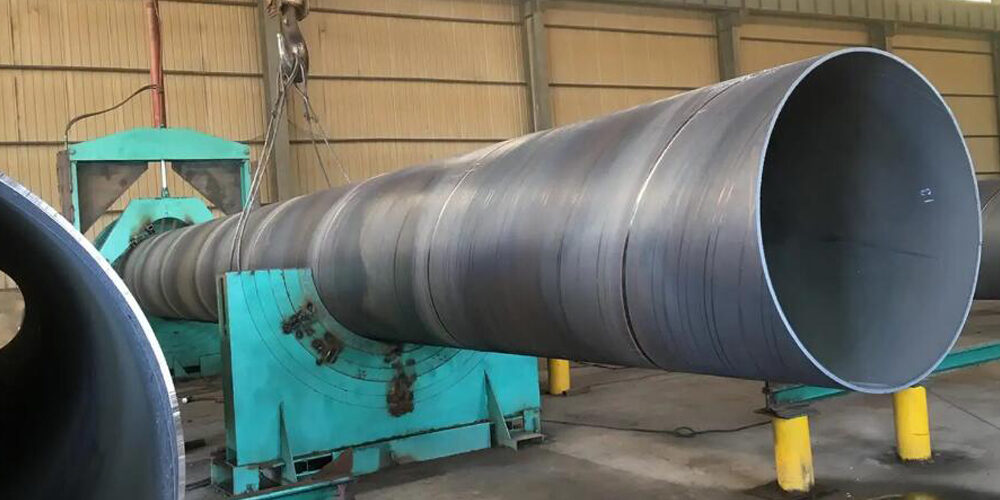

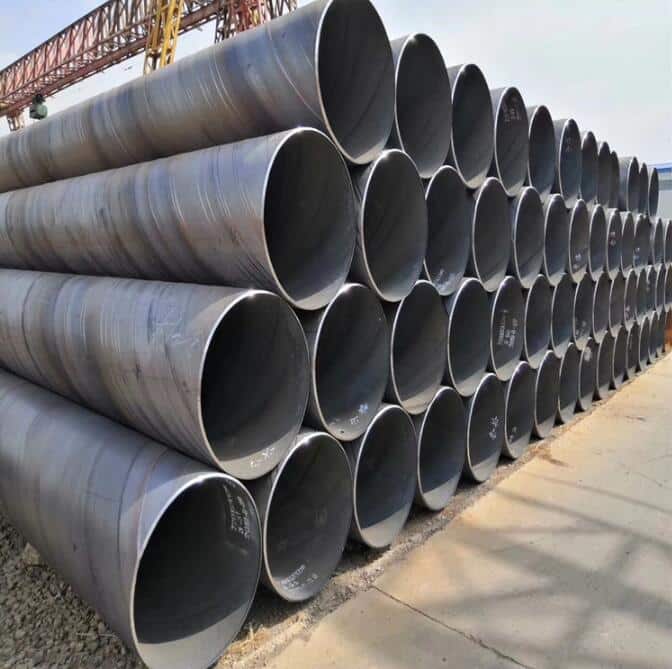

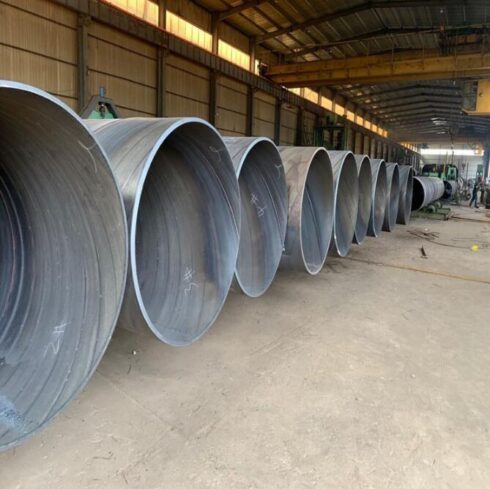

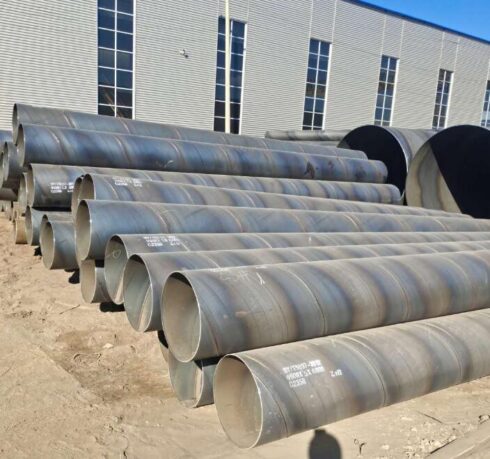

SSAW Steel Pipe

Sizes:

Out diameter:219mm-3620mm

Wall thickness: 5mm-25.4mm

Length: 3m-12m

Standard and Classfication of SSAW Steel Pipe

Classfication			Standard			Main Products
Line Pipe			API 5L PSL1/2			Line pipe
Casing			API 5CT/    ISO 11960 PSL1			Steel pipe for use as casing or tubing for wells of petroleum and natural gas industries
Steel Pipe for Fluid Service			ASTMA53			Black and hot-hipped galvanized welded and seamless steel pipe
			BS EN10217-2			Welded steel tybes for pressure purposes – delivery technical conditions – part2: Electric welded non- alloy and alloy steel tubes with specified elevated temperature properties
			BS EN10217-5			Welded steel tybes for pressure purposes – delivery technical conditions – part5: submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature properties
Steel Pipe for Ordinary Structure			ASTM A252			Welded and seamless steel pipe piles
			BS EN10219-1			Cold formed welded structural hollow sections of non-alloy and fine grain steels – part1: Technical delivert conditions
			BS EN10219-2			Cold formed welded structural hollow sections of non-alloy and fine grain steels – part2: tolerances dimmsions and sectional properties

Chemical Analysis and Mechanical Properties of SSAW Steel Pipe



Standard	Grade	Chemical Composition(max)%					Mechanical Properties(min)
		C	Si	Mn	P	S	Tensile Strength(Mpa)	Yield Strength(Mpa)
API 5CT	h40	–	–	–	–	0.030	417	417
	J55	–	–	–	–	0.030	517	517
	K55	–	–	–	–	0.300	655	655
API 5L PSL1	A	0.22	–	0.90	0.030	0.030	335	335
	B	0.26	–	1.20	0.030	0.030	415	415
	X42	0.26	–	1.30	0.030	0.030	415	415
	X46	0.26	–	1.40	0.030	0.030	435	435
	X52	0.26	–	1.40	0.030	0.030	460	460
	X56	0.26	–	1.40	0.030	0.030	490	490
	X60	0.26	–	1.40	0.030	0.030	520	520
	X65	0.26	–	1.45	0.030	0.030	535	535
	X70	0.26	–	1.65	0.030	0.030	570	570
API 5L PSL2	B	0.22	0.45	1.20	0.025	0.015	415	415
	X42	0.22	0.45	1.30	0.025	0.015	415	415
	X46	0.22	0.45	1.40	0.025	0.015	435	435
	X52	0.22	0.45	1.40	0.025	0.015	460	460
	X56	0.22	0.45	1.40	0.025	0.015	490	490
	X60	0.12	0.45	1.60	0.025	0.015	520	520
	X65	0.12	0.45	1.60	0.025	0.015	535	535
	X70	0.12	0.45	1.70	0.025	0.015	570	570
	X80	0.12	0.45	1.85	0.025	0.015	625	625
ASTM A53	A	0.25	0.10	0.95	0.050	0.045	330	330
	B	0.30	0.10	1.20	0.050	0.045	415	415
ASTM A252	1	–	–	–	0.050	–	345	345
	2	–	–	–	0.050	–	414	414
	3	–	–	–	0.050	–	455	455
EN10217-1	P195TR1	0.13	0.35	0.70	0.025	0.020	320	320
	P195TR2	0.13	0.35	0.70	0.025	0.020	320	320
	P235TR1	0.16	0.35	1.20	0.025	0.020	360	360
	P235TR2	0.16	0.35	1.20	0.025	0.020	360	360
	P265TR1	0.20	0.40	1.40	0.025	0.020	410	410
	P265TR2	0.20	0.40	1.40	0.025	0.020	410	410
EN10217-2	P195GH	0.13	0.35	0.70	0.025	0.020	320	320
	P235GH	0.16	0.35	1.20	0.025	0.020	360	360
	P265GH	0.20	0.40	1.40	0.025	0.020	410	410
EN10217-5	P235GH	0.16	0.35	1.20	0.025	0.020	360	360
	P265GH	0.20	0.40	1.40	0.025	0.020	410	410
EN10219-1	S235JRH	0.17	–	1.40	0.040	0.040	360	360
	S275JOH	0.20	–	1.50	0.035	0.035	410	410
	S275J2H	0.20	–	1.50	0.030	0.030	410	410
	S355JOH	0.22	0.55	1.60	0.035	0.035	470	470
	S355J2H	0.22	0.55	1.60	0.030	0.030	470	470
	S355K2H	0.22	0.55	1.60	0.030	0.030	470	470



SSAW Steel Pipe Manufacturing Process:

Spiral steel pipe (SSAW)is a spiral seam steel pipe made of strip steel coils as raw materials, often extruded and formed by automatic double-wire double-sided submerged arc welding. The spiral steel pipe feeds the strip steel into the welded pipe unit. After rolling by multiple rollers, the strip steel is gradually rolled up to form a round tube blank with an open gap. The reduction of the squeeze roller is adjusted to control the weld gap at 1~ 3mm, and make both ends of the welding joint flush.

Machine of manufacturing SSAW steel pipe

Edge planing machine, edge milling machine, pipe cutting machine,butt welding machine, pinching machine, hydraulic testing machine.
